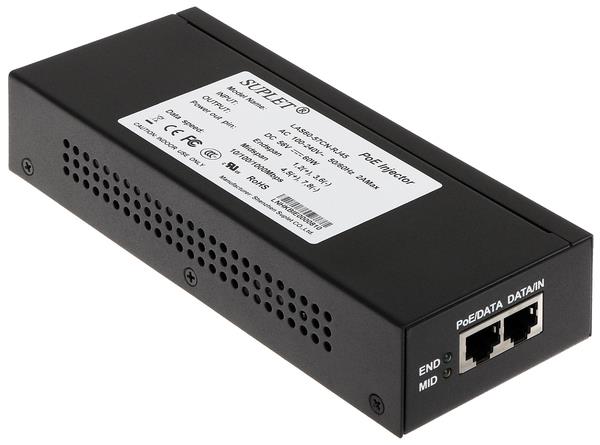

The LAS60-57CN-RJ45 midspan is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3at Power-over-Ethernet (PoE) standard. The converter signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 60W power to the port.
NOTE! Order power cable separate!
- Compatible With All IEEE pre 802.3af, 802.3at and Legacy Powered Devices
- Input voltage:90Vac~264Vac
- Support 300Vac input for long time work
- Output over current protection
- Short circuit protection
- MTBF ≥1,000,000 hrs
- Surge protection
- CE mark
- WEEE compliant, RoHS compliant
- Ethernet (RJ-45)
- Ja
Nettverk
- Dataoverføringshastighet
- 1 Gbit/s
- Antall LAN-tilkoblinger (RJ-45)
- 2 pcs.
- Antall LAN-innganger (RJ-45)
- 1 pcs.
- Antall LAN-utganger (RJ-45)
- 1 pcs.
Electrical specifications
- AC-inngangsspenning (V)
- 100 - 240 V
- Maximum Power
- 60 W
- PoE Standard
- IEEE 802.3bt Type 3 (PoE++)
Mål og vekt
- Width
- 70,8 mm
- Dypde
- 185 mm
- Høyde
- 37 mm
- Net weight
- 0,473 kg
Øvre
- Warranty
- 1 år
Pakkeinformasjon
- Pakkestørrelse
- 218 x 86 x 63 mm
- Pakkevekt
- 481 g
