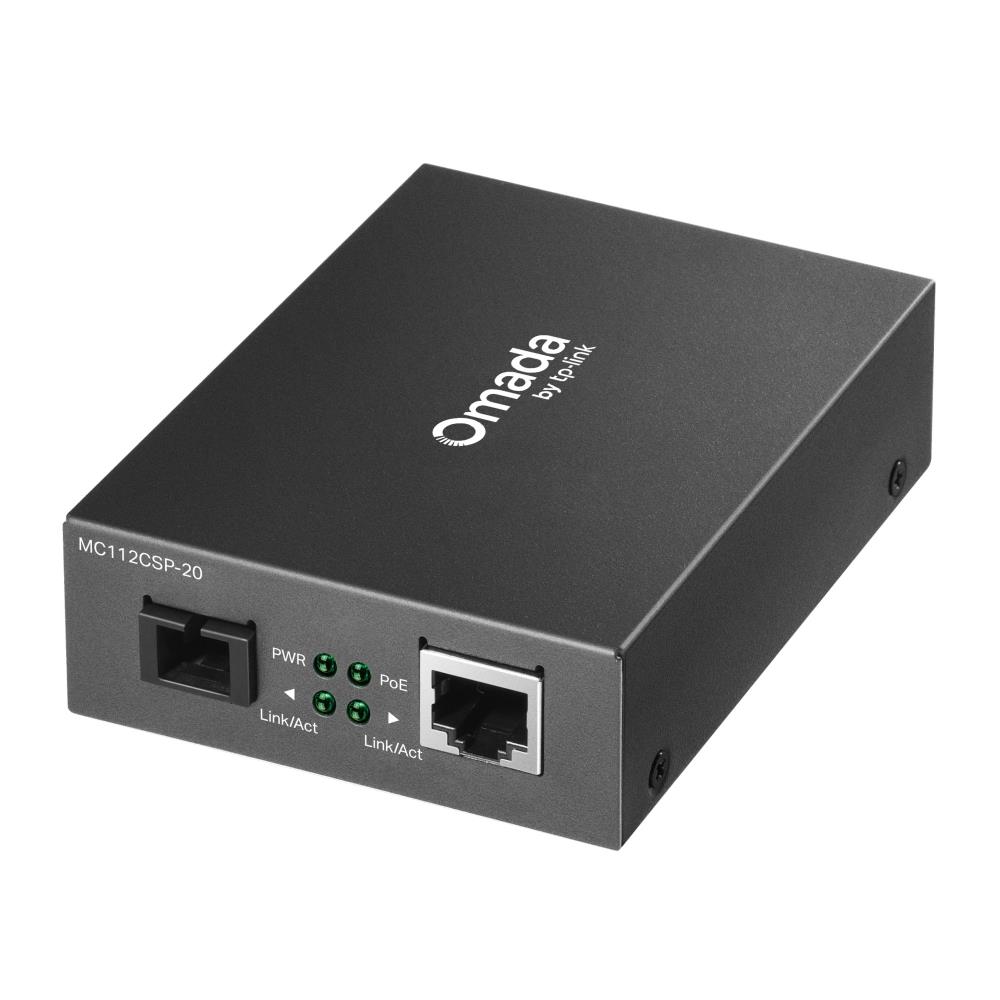

Omada 10/100 Mbps WDM Media Converter MC112CSP-20

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20km
• The 802.3af PoE output makes remote camera deployment easier and more convenient.

What This Product Does
MC112CSP-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1× 10/100 Mbps PoE RJ45 port and 1× 100 Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network.

How This Product Works
MC112CSP-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. MC112CSP-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the MC112CSP-20 should send data at a wavelength of 1550nm and receive data at a wavelength of 1310nm. Another media converter MC111CS is one of the products that can cooperate with MC112CSP-20.
