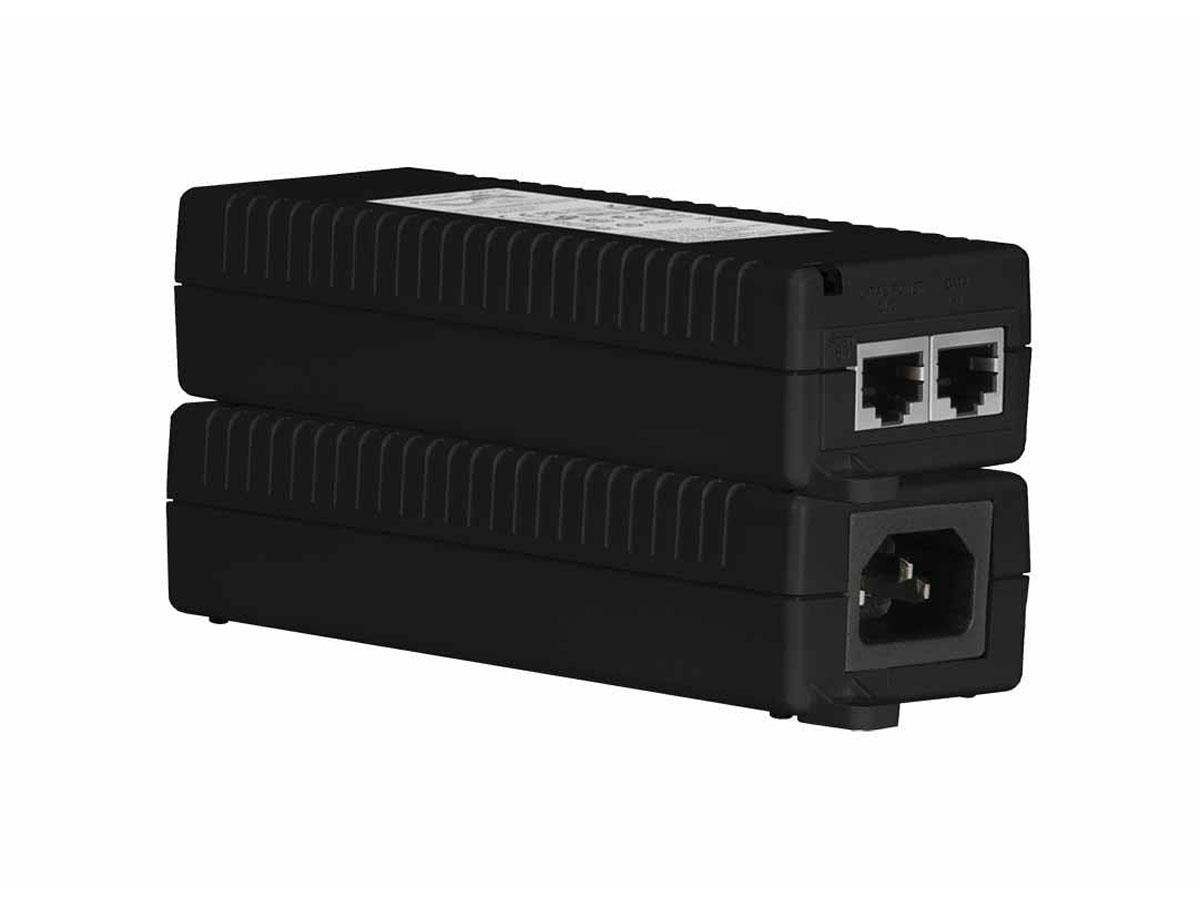

With the high power PS-POE-AT-TC Injector, transmit both power and data through a single cable to a remotely located Power-over-Ethernet (PoE) touch panel. Required for use with the MVP-9000i and DXLink Twisted Pair Transmitters and Receivers, it is also compatible with the MXT-1000, MXD-1000, MXT-700, MXD-700 and MXD-430. This self-contained single-port PoE gigabit power supply "injects" DC power and data into the same twisted pair cable at a distance of up to 100 meters (328 feet).
Features
- 10/100/1000 (MbPS) Data Rates
- Meets IEEE802.3at requirements
- Load Diagnostic LED
- 100/240 VAC Universal Input
- Ethernet (RJ-45)
- Ja
Nettverk
- Dataoverføringshastighet
- 1 Gbit/s
- Antall LAN-tilkoblinger (RJ-45)
- 2 pcs.
- Antall LAN-innganger (RJ-45)
- 1 pcs.
- Antall LAN-utganger (RJ-45)
- 1 pcs.
Electrical specifications
- AC-inngangsspenning (V)
- 100-240 V
- AC-frekvens (Hz)
- 0,8
- Maximum Power
- 30 W
- PoE Standard
- IEEE 802.3at (PoE+)
Pakkeinformasjon
- Pakkestørrelse
- 215 x 115 x 55 mm
- Pakkevekt
- 422 g
