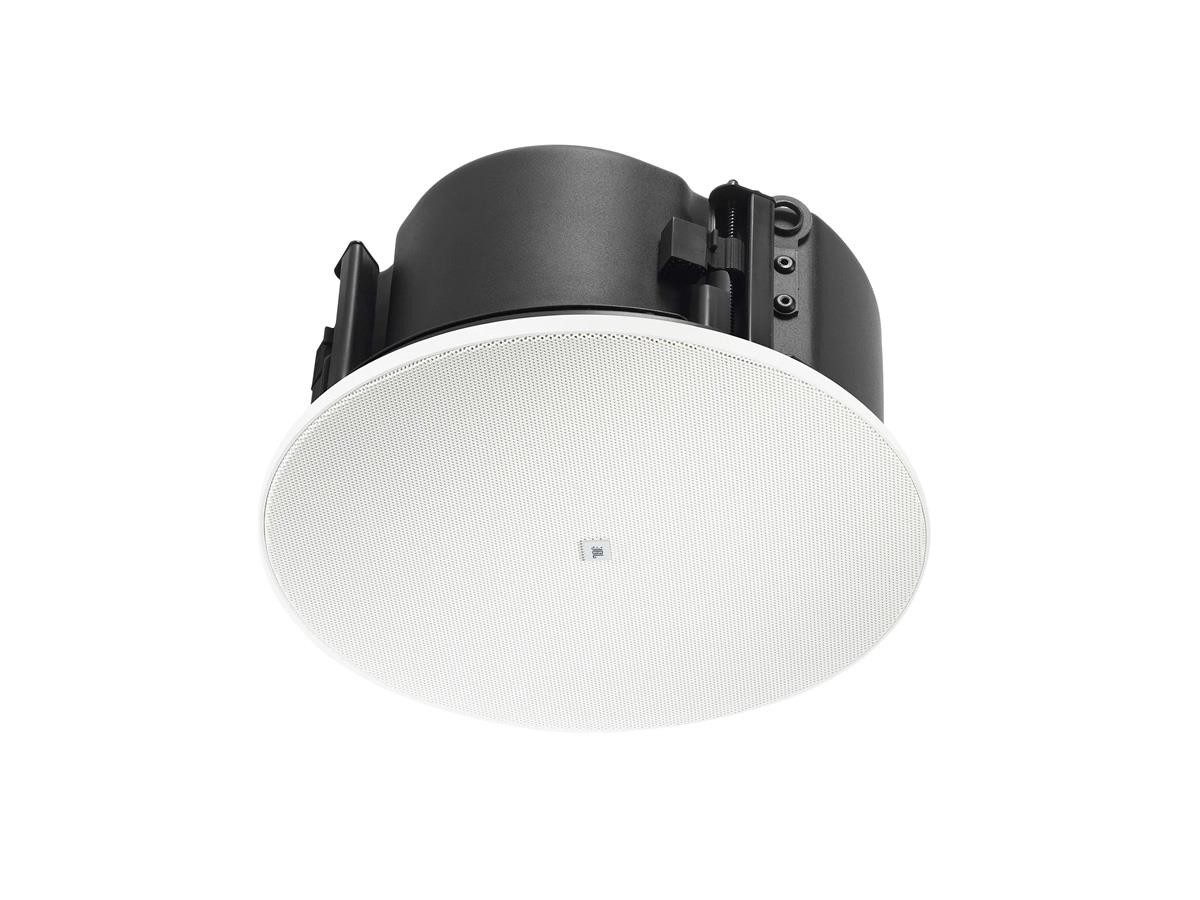

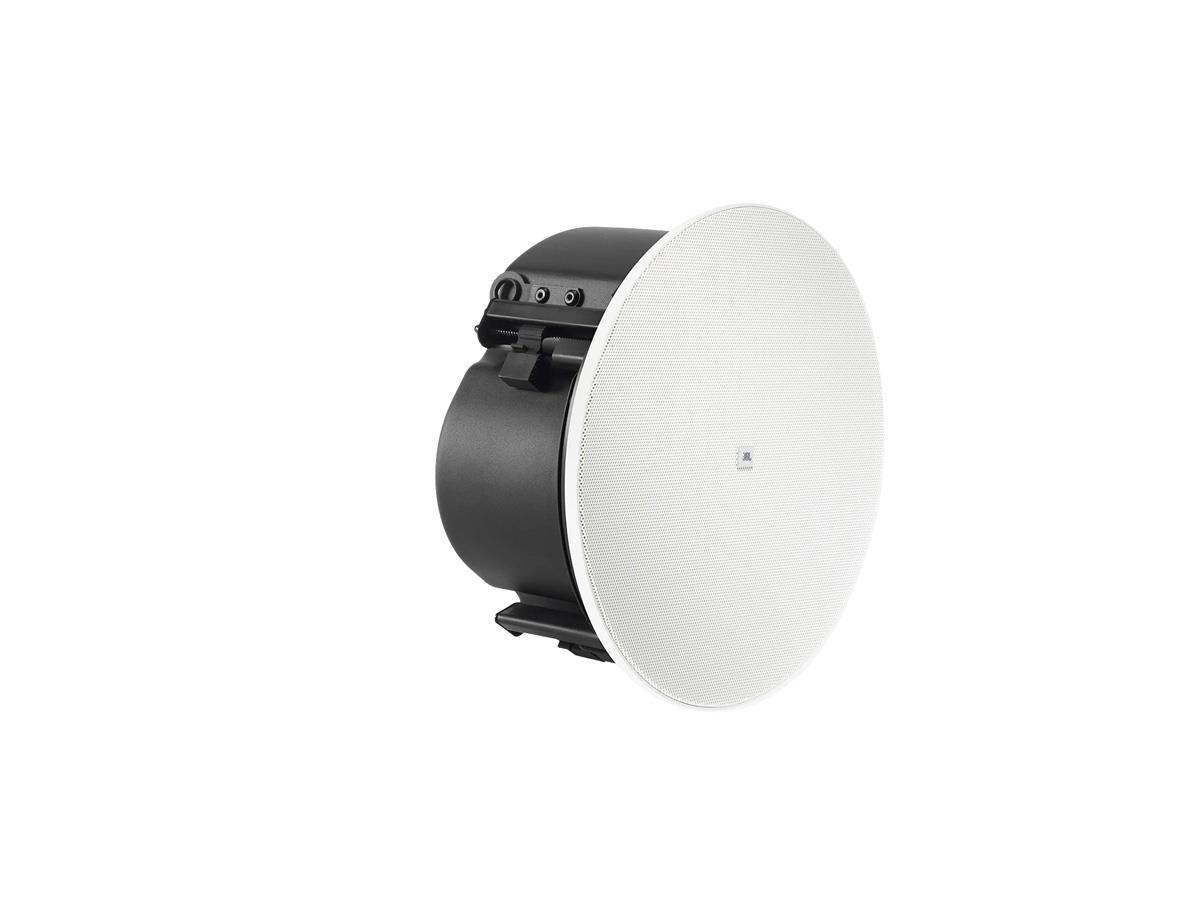

The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 130° of consistent, full, rich sound character that closely matches that of the Control 424C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 424LP includes a transformer to support both 70V/100V and low impedance applications.
- Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
- Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted
- CRBI™ technology for consistent 130° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
- Full-face, easily paintable magnetic grilles
- Tool-free terminal covers with captive hand screws
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
General
- Modellserie
- Control 420
- Høyttalertype
- Tak
- Aktiv/Passiv
- Passive
- DSP
- Nei
- Mixer
- Nei
- Farge
- Hvit
Speaker drivers
- LF
- 4 "
- HF
- 0,75 "
Audio specifications
- Impedance
- 16 Ohm
- Frekvensområde Min
- 63 Hz
- Frekvensområde Maks
- 20 000 Hz
- Sensitivity (1W/1m)
- 87 dB
- Effekt
- 60 W
- 70/100V
- Ja
- Transformer taps (100V)
- 30W, 15W, 7.5W
- Transformer taps (70V)
- 30W, 15W, 7.5W, 3.8W
- Coverage angle (Hor)
- 130 °
- Coverage angle (Ver)
- 130 °
Connections
- Dante
- Nei
- Bluetooth
- Nei
- Ethernet (RJ-45)
- Nei
- Wi-Fi
- Nei
Energy
- Battery
- Nei
Additional information
- Outdoor use
- Nei
Pakkeinformasjon
- Pakkestørrelse
- 240 x 293 x 695 mm
- Pakkevekt
- 6,60 kg
Pakkeinformasjon (2 stk)
- Pakkestørrelse
- 480 x 300 x 700 mm
- Pakkevekt
- 13,20 kg
