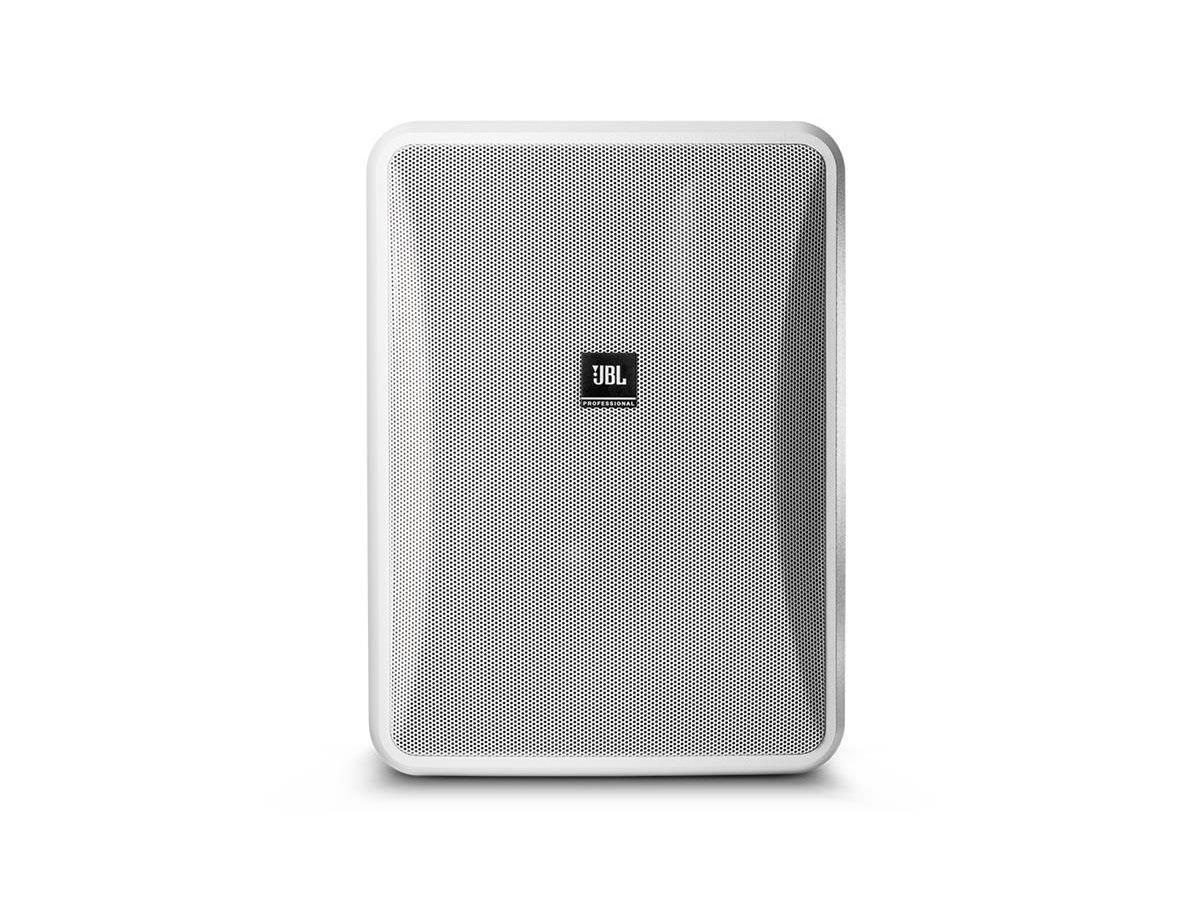

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.
The frequency response is extremely smooth, resulting in a very natural sound character, and the response extends down to 45 Hz, providing strong bass capability. The system is capable of handling 120 Watts continuous pink noise (240 Watts program) at its 8 ohm setting and is also equipped with a built-in 60 Watt 70V/100V multi-tap transformer for operation on distributed speaker lines. The combination of high sensitivity and power handling provides high Max SPL of 112 dB.
Features
- Components:
• 8” woofer with woven fiberglass cone
• 1” PEI diaphragm tweeter with fluid cooling - Contemporary, high-design appearance

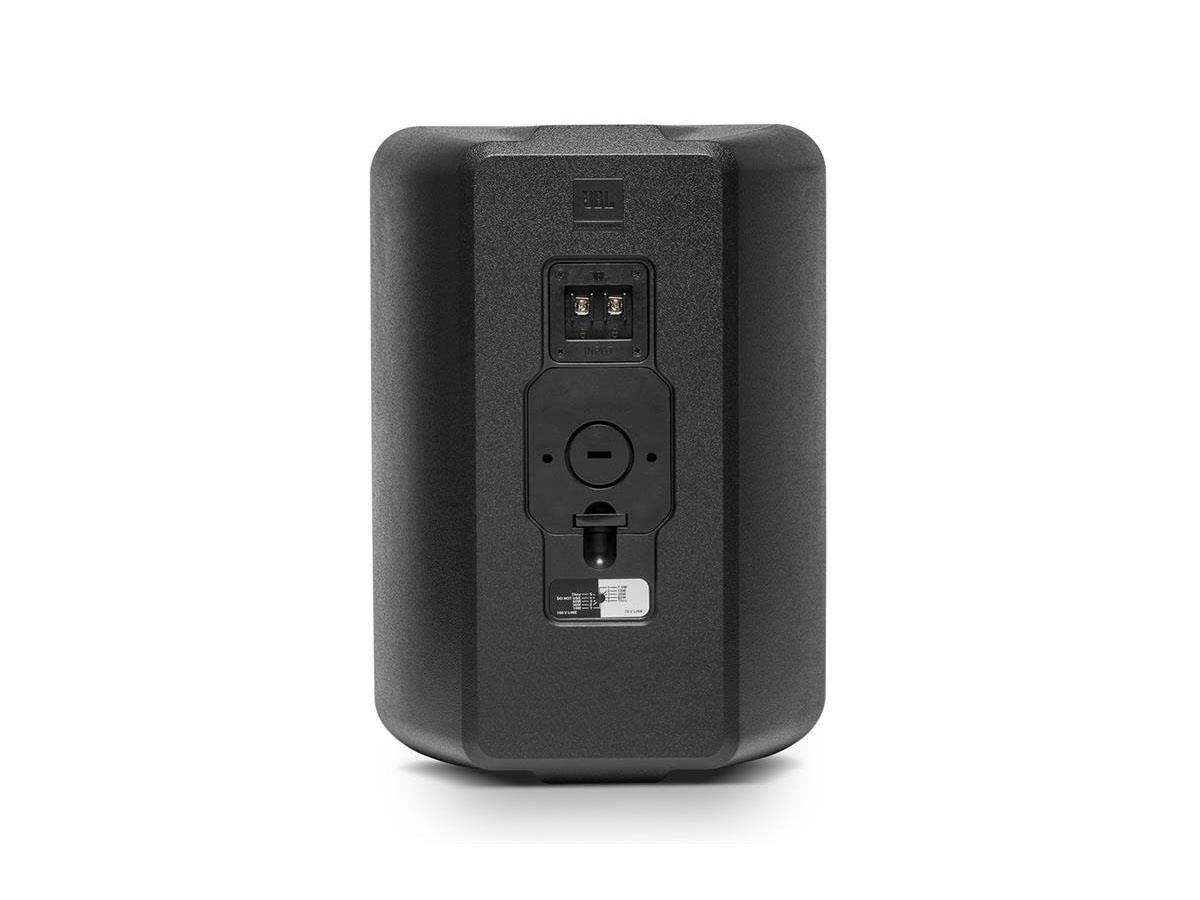

- Built-in InvisiBall® mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage
- 120 Watt power handling (240 Watt program) in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.
General
- Modellserie
- Control 20
- Høyttalertype
- Vegg
- Aktiv/Passiv
- Passive
- Farge
- Hvit
Speaker drivers
- LF
- 8 "
- HF
- 1 "
Audio specifications
- Impedance
- 8 Ohm
- Frekvensområde Min
- 45 Hz
- Frekvensområde Maks
- 20 000 Hz
- Sensitivity (1W/1m)
- 91 dB
- Effekt
- 90 W
- 70/100V
- Ja
- Transformer taps (100V)
- 60W, 30W, 15W
- Transformer taps (70V)
- 60W, 30W, 15W, 7.5W
- Max SPL
- 112 dB 118 peak
- Coverage angle (Hor)
- 100 °
- Coverage angle (Ver)
- 100 °
Størrelse & Vekt
- Width
- 282 mm
- Dypde
- 219 mm
- Høyde
- 386 mm
- Net weight
- 6,8 kg
Additional information
- Outdoor use
- Ja IP-44; IP-55 with optional WeatherMax grille/panel cover
- Included Accessories
- InvisiBall wall-mounting system; 6 mm x 180 mm hex key
Pakkeinformasjon
- Pakkestørrelse
- 290 x 350 x 455 mm
- Pakkevekt
- 6,58 kg
Pakkeinformasjon (2 stk)
- Pakkestørrelse
- 605 x 412 x 448 mm
- Pakkevekt
- 13,20 kg
